Regular price
$1,145.00
Regular price
Sale price
$1,145.00

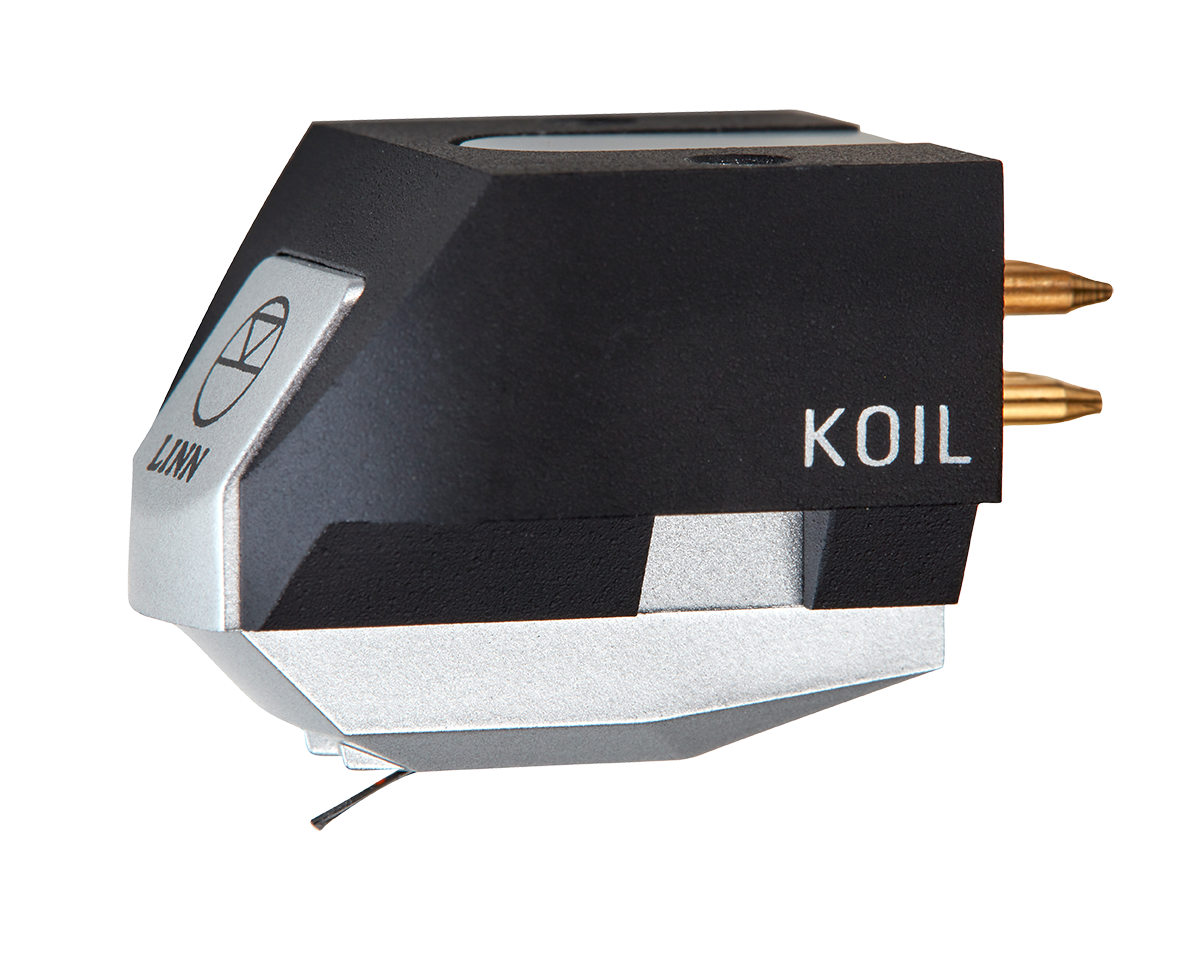

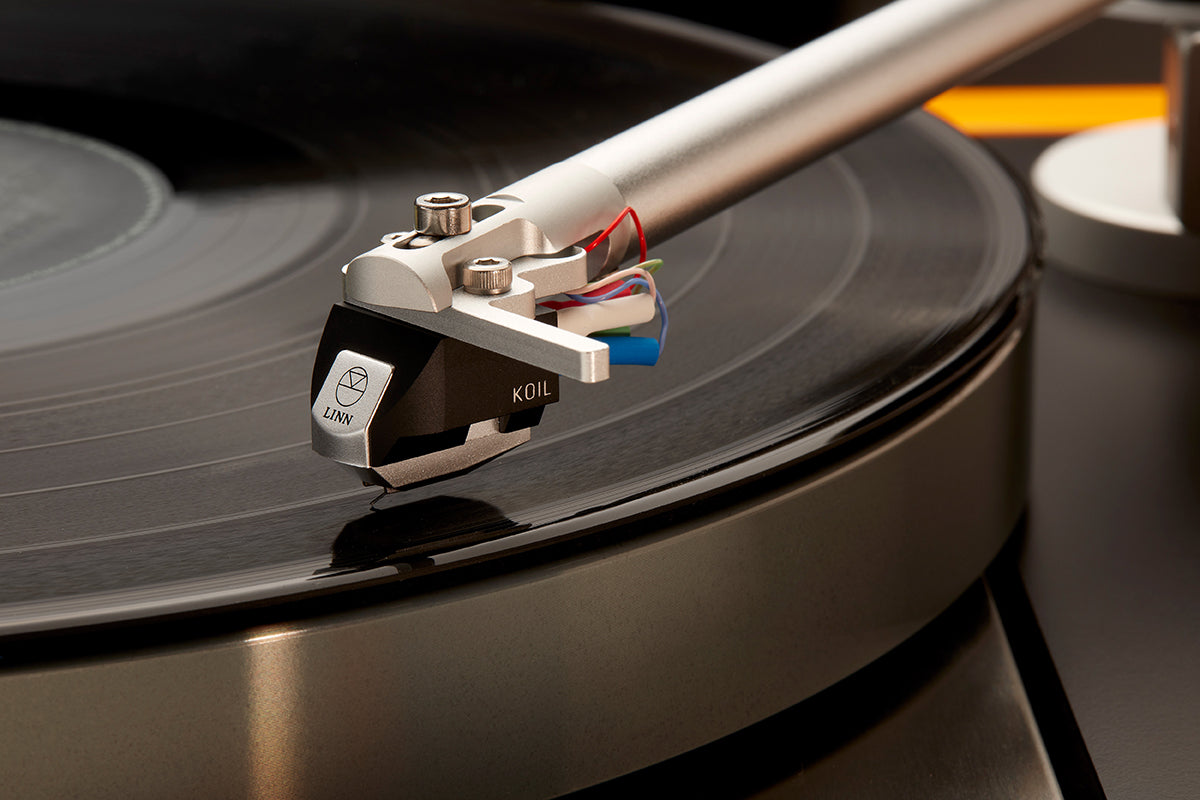

Koil is a superb first step onto the ladder of premium moving coil cartridges. This Majik-level cartridge provides a step up in performance from Adikt; and is available either as an upgrade, or fitted as standard to a new Majik LP12 MC.
Choose Koil if you intend to use your Majik LP12 with a moving coil phono preamplifier. Upgrade from Adikt to progress your journey along the path to vinyl playback perfection.
Key features
- Moving coil (MC)
- Nude Microlinear Stylus
- Low mass boron cantilever
Technical Specifications
Entry-level moving coil cartridge
| Stylus Type | Nude Microlinear |
| Cantilever | Boron |
| Armature | Trapezial |
| Coil Wire | Copper |
| Pin Connection Type | 1.2mm gold pin |
| Mounting Points | 2 |
| Output Voltage | 0.4mV @ 5cm/s |
| Channel Balance at 1 kHz | 1.0dB |
| Channel Separation at 1kHz | 27dB |
| Load Resistance | 100 Ω |
| Load Capacitance | 1 nF |
| Tracking Force | 1.8-2.2 g (2.0 g nom) |
| Cartridge Mass | 7.6 g |
