Embrace an outstanding revival of sound as each note is resurrected to its purest form.

This avant-garde masterpiece is optimized to brings forth a symphony of clarity and depth, breathing life into every note and melody.

Designed with precision engineering and cutting-edge technology, our innovative DAC architecture focusing on analog perfection was crafted with the goal of transcending recording fidelity; going one step further to bring the true soul of the music to your ears. Embrace the dawn of a new sonic era with our latest creation; where music is reborn anew with every play.

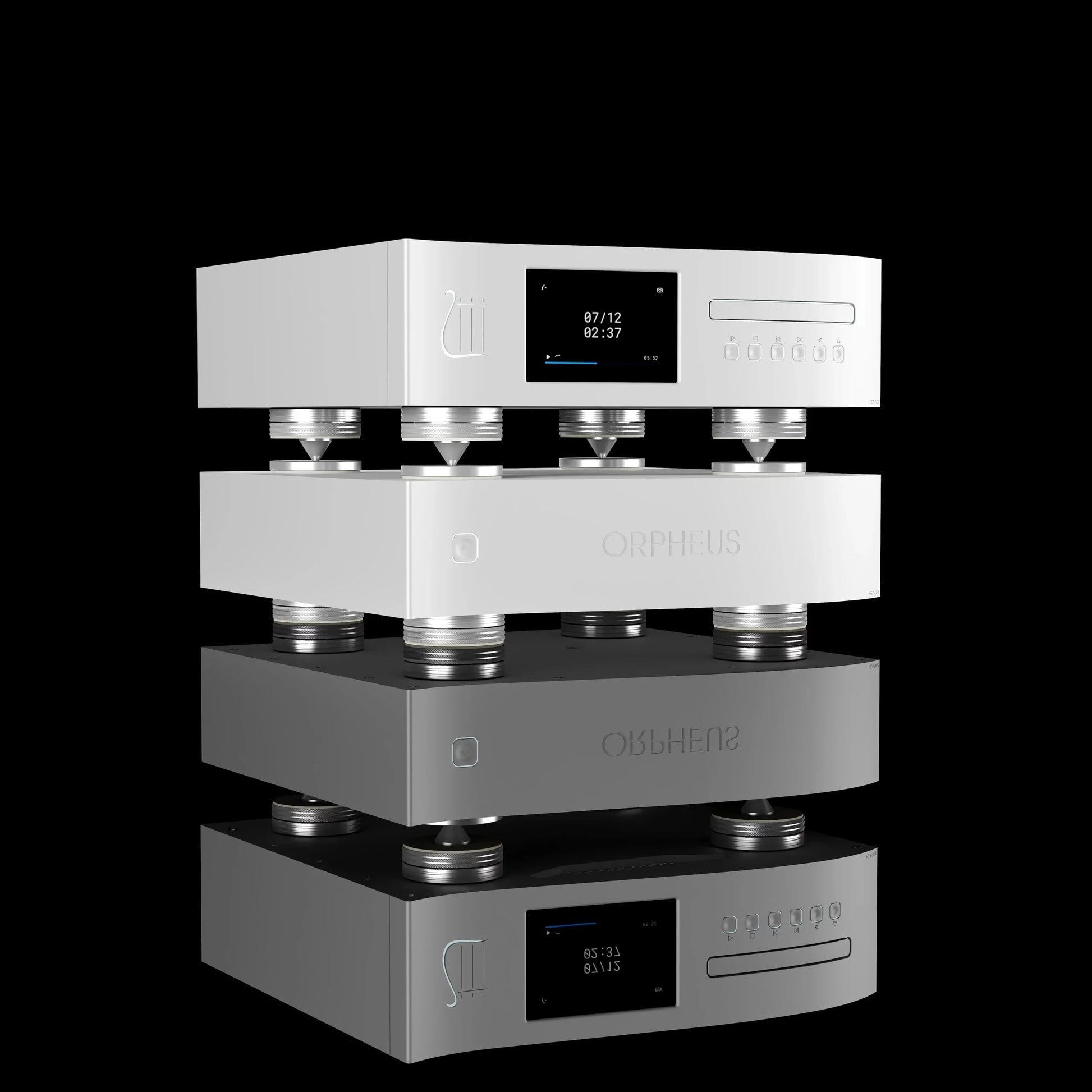

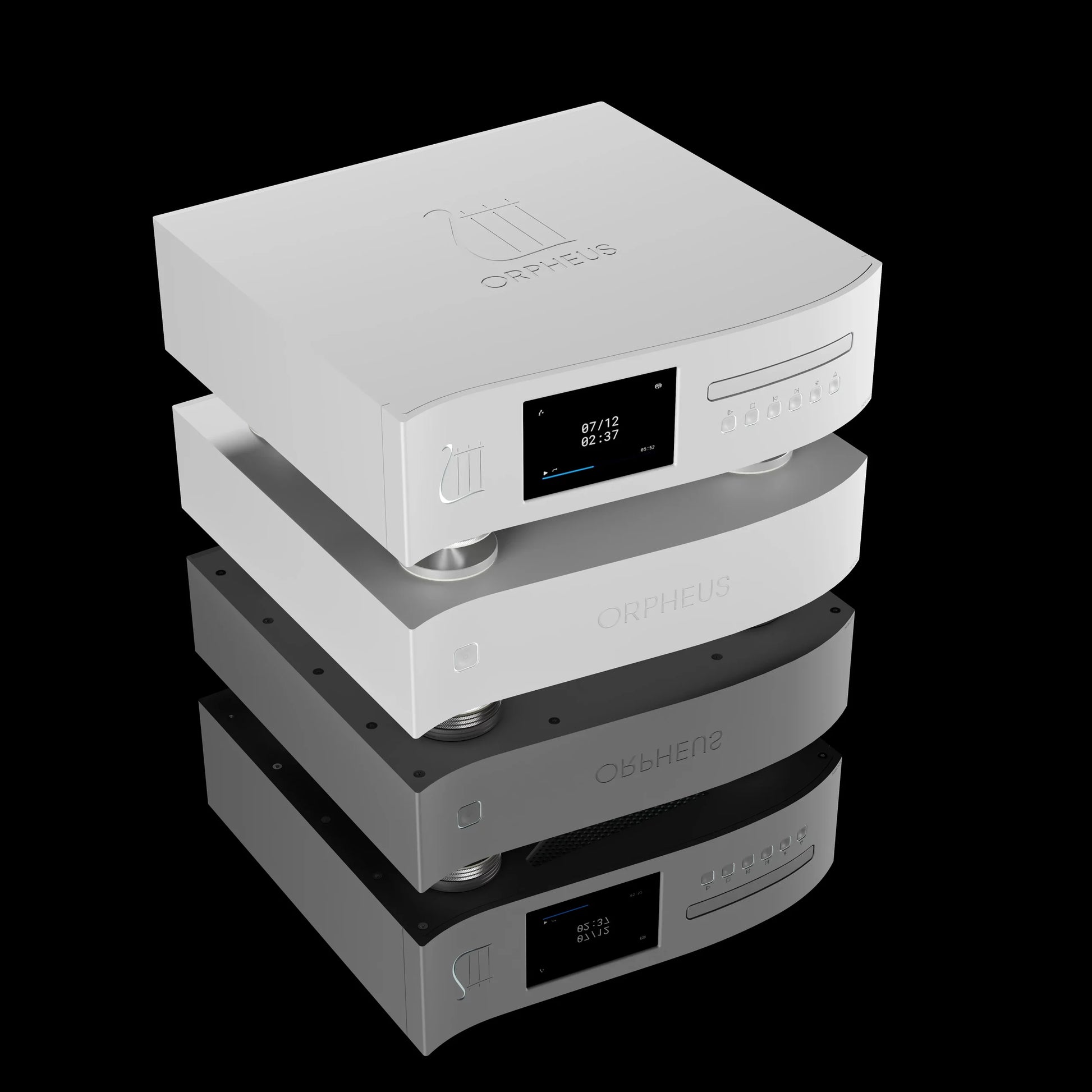

H Zero PS Opus II

Dual Monaural full Analogue Output SACD Player

According to Antoine de Saint-Exupéry, “Perfection is achieved, not when there is nothing left to add, but when there is nothing left to take away.”

This SACD player from the new Heritage Opus II line epitomizes simplicity with its full analog output topology. It is built upon a high-quality SACD Mechanism, meticulously synchronized by the Tempo clock module from our Maestro line, integrating high-precision quartz. To enhance versatility with digital sources, the system is complemented by a USB input (PCM/DSD). A pair of high-quality DACs, designed in true dual mono architecture, are tasked with bringing digitized music back to life.

The digital-to-analog converter technology is based on an 8-4-4-1 topology. This configuration involves 8 synchronous DACs operating in current, grouped in pairs during the current-to-voltage conversion to yield 4 voltage groups. These four voltage groups then pass through four ‘Revival Filters’ in parallel, revitalizing the music and bringing the artist closer to the listener. After this revitalization, the four signals require delicate handling. Hence, the final summing stage comprises solely high-quality metal-film resistors with a tolerance of 0.1 %.

The Revival Filter restores the breath of life to the sound that it had before digitization. Great importance has been placed on the phase work.

To cater to all preamplifiers on the market, the final stage allows for adjusting the output level across a range of -16 dB to 0 dB in increments of 0.1 dB, with the option of balancing the outputs if necessary. The adjustment stage employs the CRQL technology utilized in the H Two 33BD Opus II preamplifier.

MECHANISM TECHNOLOGY
System Super Audio Compact disc player
SACD D&M
Compatible disc types SACD, CD, CD-R, CD-RW
DIGITAL INPUT
Connections 1x Audio USB type B
Supported Samples Rates PCM: up to 384kHz & 32-bit
DSD: up to DSD256
ANALOG OUTPUT
Connections 1x Balanced, 1x Unbalanced (Stereo)
Output Voltage (Bal/Unbal) 4.8 Vrms / 2.4 Vrms
THD+N < 0.0003 % (-110.5 dB) @ 1 kHz, 0 dBFs
Crosstalk, L to R or R to L < -126 dB
Clip to Noise Ratio (input Bal) < -126 dB
Clip to Noise Ratio (input Unbal) < -126 dB
Output impedance Balanced: 50 Ω Unbalanced: 25 Ω
Phase inversion 0° or 180°
TECHNOLOGY USED

Real dual mono DAC topology.
8 DAC per channel combined to reduce the output noise floor, architecture 8-4-4-1
Balancing output voltage between left and right channel on a 16 dB scale with a 0.1 dB resolution.
POWER
Nominal line voltage 100, 115 or 230 Vac
Input voltage range ±8 %
Maximum power consumption 100 W
Standby consumption Less than 1 W
SIZE & WEIGHT
Height Device alone: 146 mm
Device + spikes: 175 mm
Device + spikes + PSU: 301 mm
Depth 440 mm
Width 440 mm
Weight (Power supply included) 52 kg
SAFETY FEATURES
Automatic mute if sensing a drop in the mains supply voltage.
