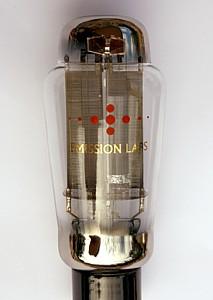

Emission Labs 5Z3 Mesh (Each)

  • Sale
  • Regular price $330.00
Shipping calculated at checkout.


This is a stock item.  Currently our first stock order is coming from EML.  Will be fulfilled as soon as stock arrives in about two weeks.

This data sheet applies for the 5Z3-Mesh and 5U4G-Mesh, which are electrically identical, apart from the sockets. 5U4G-Mesh uses as Octal Socket socket, of which only five pins are used (and one of those is electrically not connected). 5Z3-Mesh uses a four Pin UX4 socket.

These are direct replacements for the historical 5U4G or 5Z3. They can not replace 5U4GA or 5U4GB which are different tubes. See Note 4

Note that the Emission Labs® tube is somewhat larger size than the historical tubes. Check below at mechanical data, for details. Like most NOS rectifiers, also the EML rectifiers are Slow-Start tubes, protecting the power supply and the whole amplifier to some degree. The delay time for first function is 2 seconds, and the delay for full current is 7 seconds.

Read More Here:                                                                       http://www.emissionlabs.com/datasheets/EML5U4G.htm
