By SME

SME M2-9R Tonearm

Regular price $4,809.00
Regular price Sale price $4,809.00
Shipping calculated at checkout.
Availability: Out of stock
SKU:
Tags:
Collections:
Regular price $4,809.00
Regular price Sale price $4,809.00

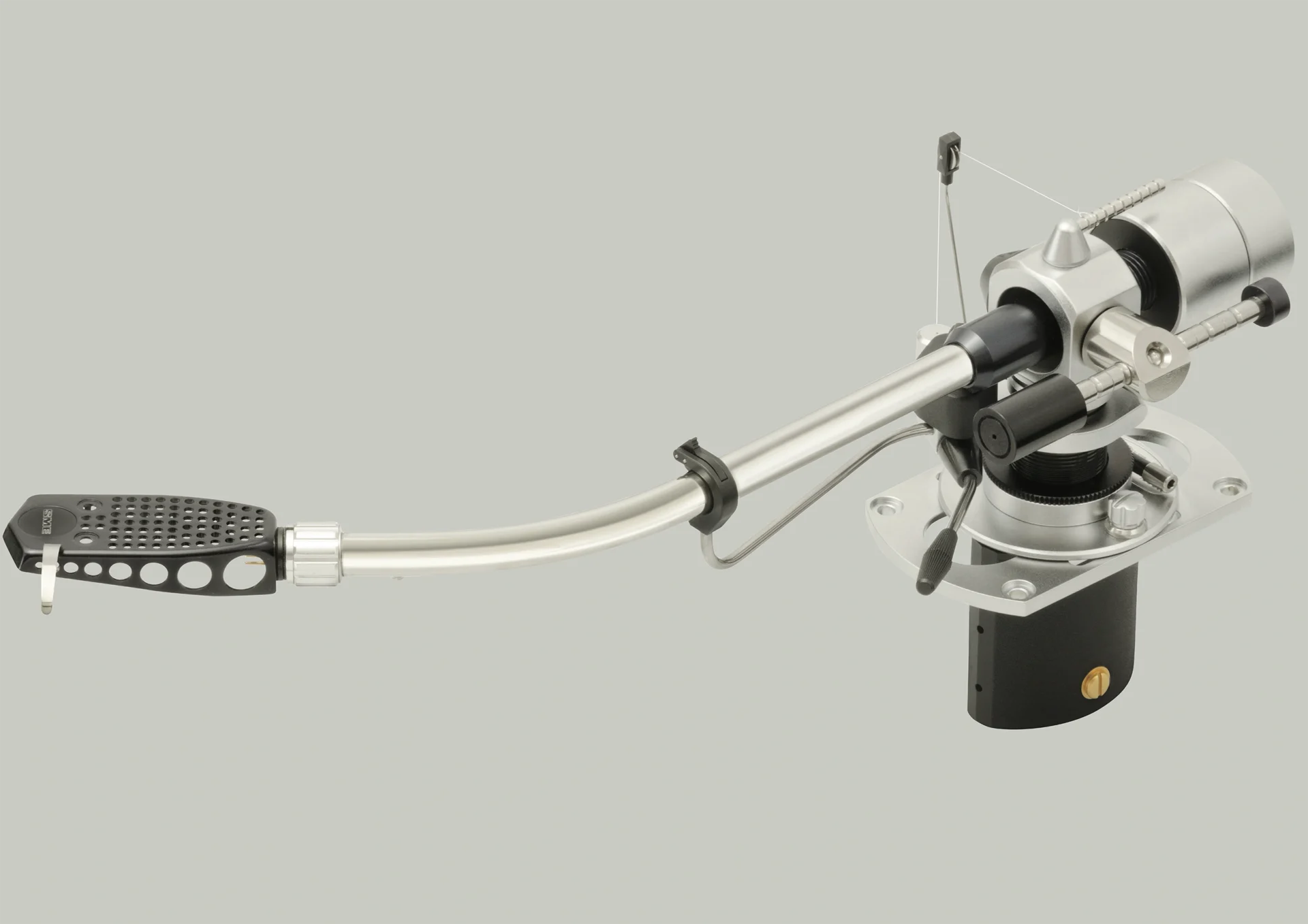

The Model M2-9R precision tonearm developed by popular demand offers the design and engineering excellence associated with SME in a compact package.

As a member of the M2 family this tonearm is built by enthusiasts for enthusiasts and among its extensive features include, vertical and horizontal tracking adjustment, tungsten balance weights housed in satin chromed brass sleeves. Double draw-pin detachable headshell with azimuth adjustment and height adjustment by thumb wheel enabling its use with wide range of both cartridges and turntables.




Series M2-9R Dimensions
A – Distance from pivot to stylus 233,20 mm
B – Distance from pivot to turntable centre 215,40 mm
C – Cartridge fixing centres 12,70 mm
D – Offset angle 23,63°
E – Linear offset 93,47 mm
F – Overhang 17,80 mm
G – Height above mounting surface max. 87,0 mm
min. 63,0 mm
H – Mounting surface to underside of headshell max. 67,40 mm
min. 43,40 mm
J – Depth below mounting surface 46,0 mm
K – Balance weight radial clearance 73,0 mm
