VAC exists for one reason: to bring the wealth of recorded music back with the greatest possible breath of life, to preserve and present the essence of the performance, to allow the artist to connect with you, today, now, right where you are.

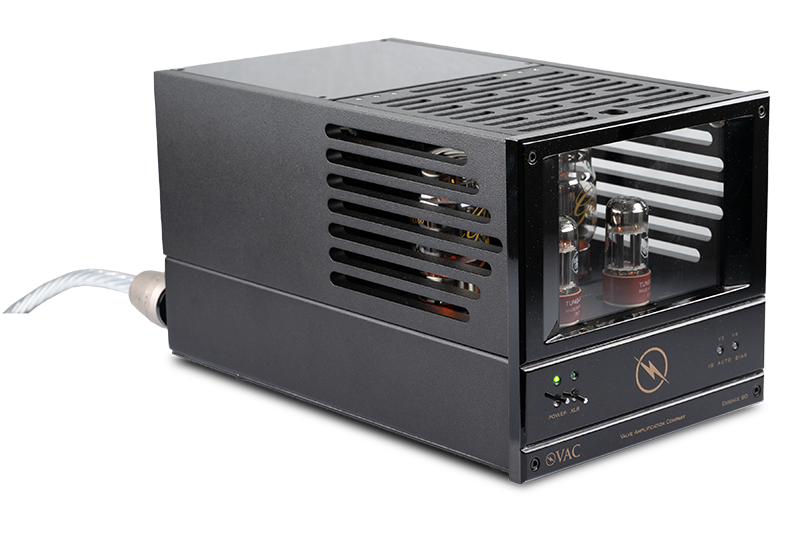

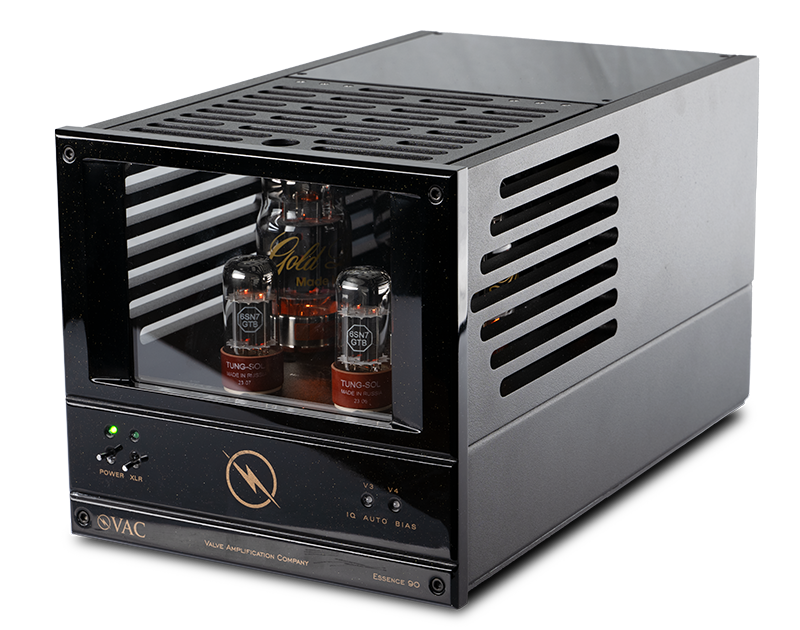

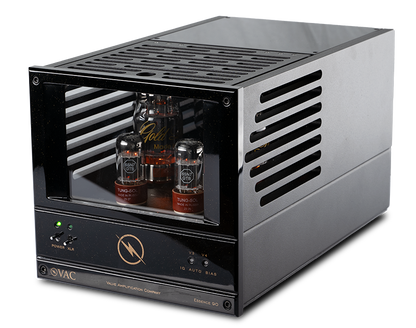

The Essence 90 Monobloc combines a pair of the legendary Gold Lion KT88 beam power tubes with our patented iQ Continuous Automatic Bias System and a massive 14 pound power transformer to deliver a vivid, lifelike sound that practically leaps from the loudspeakers. In a circuit adapted from our larger amplifiers, two 6SN7GTB octal twin triodes operating in a Class A1 in a direct coupled configuration form the input and driver circuit.

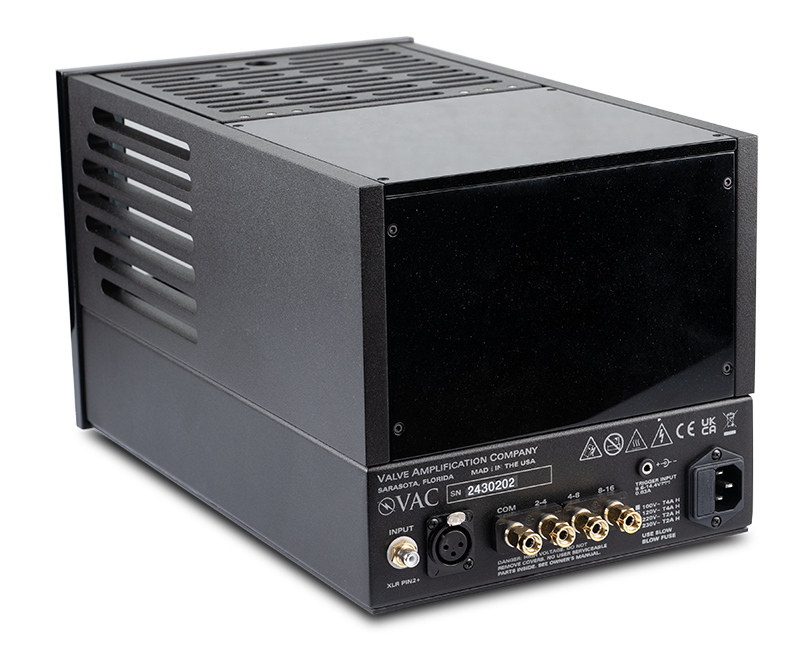

An external balanced (XLR) / SE (RCA) input switch alters six points within the amplifier to configure the circuit as fully balanced to accept a single-ended input. In either mode, the Essence 90 iQ is acting in the optimal fashion to accommodate your connection requirement.
The Essence 90 iQ will deliver 90 watts continuously into 4, 8, or 16 ohm loads via premium Cardas rhodium plated binding posts.
|
Power Output |
90 watts |
|
Load Impedance |
4, 8, or 16 ohms |
|
Power Bandwidth |
13 Hz to 70 kHz |
|
Input |
Neutrik XLR to fully balanced circuit Cardas rhodium RCA to single-ended input |
|
Tubes |
2 x Gold Lion KT88 beam power 2 x TungSol 6SN7GTB twin triode Hinged vented grille for access |
|
Voltage |
May be factory configured for 100, 120, 220, or 230/240 volts 50 Hz or 60 Hz |
|
Power Input |
Detachable cord to 15 ampere IEC receptacle |
|
Fascia Finish |
Hand polished black gloss with gold flake or silver metallic |
|
Warranty |
Two years parts & labor in the continental USA except vacuum tubes (90 days) See owner’s manual for terms and details |
|
Dimensions (HxWxD) |
8.7" x 9" x 15" (221 x 229 x 381 mm) |
|
Shipping Weight |
46 lbs. |
|
Origin |
Handcrafted in Sarasota, Florida, USA |
