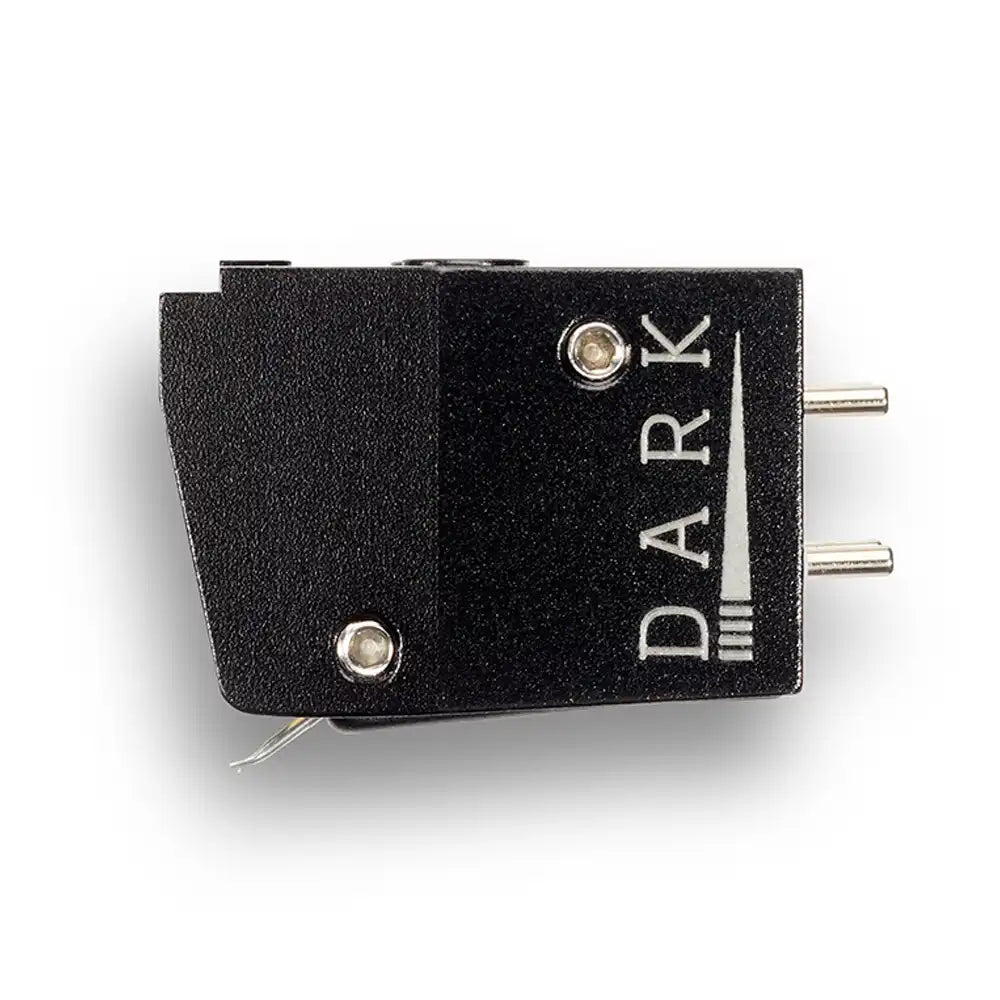

dark sabre MM Cartridge

$1,699.00USD
Experience a new era of musical precision with Dark Sabre, where innovative design and cutting-edge technology converge. This moving magnet cartridge redefines clarity, boasting a single-piece chassis, advanced fixing formation, and a micro-elliptical nude diamond stylus for unparalleled sonic excellence.

Precision Redefined in Audio Artistry

Unveiling a paradigm shift in musical precision and definition, the Dark Sabre transcends expectations. Leveraging advancements from its successful sibling (Sabre MM), this cartridge boasts an innovative fixing formation, a unified single-piece chassis, and an enhanced profile for optimized weight distribution and surface traction.



Featuring a micro-elliptical nude diamond stylus and telescopic cantilever, the Dark Sabre positions itself at the forefront of moving magnet cartridge technology. With its groundbreaking design and cutting-edge features, it redefines the standards of audio excellence, promising an unparalleled listening experience that resonates with the essence of pure, refined sound.

features

  • Aluminum alloy body CNC precision machined from solid then hard anodized black.
  • The low-mass generator utilizes an Alnico magnet with a low-mass cross coil made of pure
    virgin copper wires.
  • The low-mass generator is mounted into the high-mass body using a Quad-Point Contact
    with Four Stainless’ Spike’ Screws for optimum support and control of unwanted mechanical
    vibrations.
  • The body is mass-tuned to the generator for optimum support of unwanted energy
    transfer.
  • The telescopic aluminum tube cantilever utilizing two different aluminum materials –
    maximizes stiffness without a massive high Q peak.
  • Nude Micro Elliptical single crystal diamond stylus tip for maximum tracking ability without
    compromising the high-frequency response or increasing surface noise.
  • Square shank diamond assembly maximizes alignment precision, consistency, and rigidity.
  • Alignment ridge on the front top that assists mounting Sabre to any Vertere tonearm.
  • Three specifically designed contact points CNC machined into the top of the body that
    provide the exact mechanical coupling required.
  • Wideband frequency response of below 14Hz to above 28kHz
  • Output of 4.3mV will provide a lifelike dynamic range with depth and precision.

technical specifications

Generator Type
Moving Magnet

Output
4.3mV (@1kHz, 5cm/sec.)

Recommended input load
47Ω Max. 470pF

Recommended Tracking Weight
2.0 g (1.9 g – 2.1 g)

Frequency response
14 Hz -28 kHz

Channel separation
Minimum 22 dB

Coil resistance
1 kΩ, @1kHz

Dynamic compliance
10 x 10-⁶ cm/dyne (@100Hz)

Magnet type
Alnico

Mounting to stylus
9.0mm

Head-shell to stylus
18.5mm

Stylus
Nude | Micro Eliptical (7.5×15.5 μm)

Cantilever
Aluminum – Telescopic

Headshell mounting
Special Tri-Point Contact M2.5 Threaded Fixing Holes

Generator fixing
Special Quad-Point Contact Four stainless ‘spike’ screws

Net weight
11.5g
